Thread Pitch Information

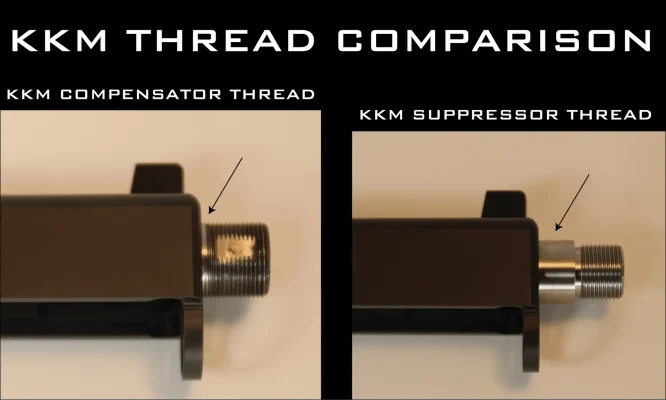

We get a lot of questions about thread pitches and what we use on particular barrels. Glock barrels are available in two types of threads: Suppressor Threads and Compensator Threads. These differ in a few ways. Our suppressor threaded barrels are available in common suppressor adapter pitches like:

1/2×28 for 9mm and .357 Sig

9/16×24 for 10mm and .40S&W

.578×28 for .45ACP

These barrels also have a longer distance between the end of the slide and the start of the threads. This accounts for guide rod interference when using certain suppressors.

Our compensator barrels are threaded:

9/16×32 for 9mm and .40S&W

5/8×32 for 10mm and .45ACP

Using this thread pitch allows us to get the compensator as close as possible to the slide. This wouldn’t work for a suppressor as the guide rod would hit the suppressor. As you can see, these are not interchangeable.

Our M&P barrels are available in the above mentioned suppressor threads as well as Carver comp threads if you plan on using a Carver Custom compensator.

1/2×28 for 9mm and .357 Sig Carver Comp Threads

9/16×24 for .40S&W Carver Comp Threads
